Hygienic steel panel radiators "Oasis Pro", type 10, height 400, side connection

The quality and reliability of the leader. Warmth for many years to come.

Retail shops
Web-Shops
Buy in Bulk
image decription

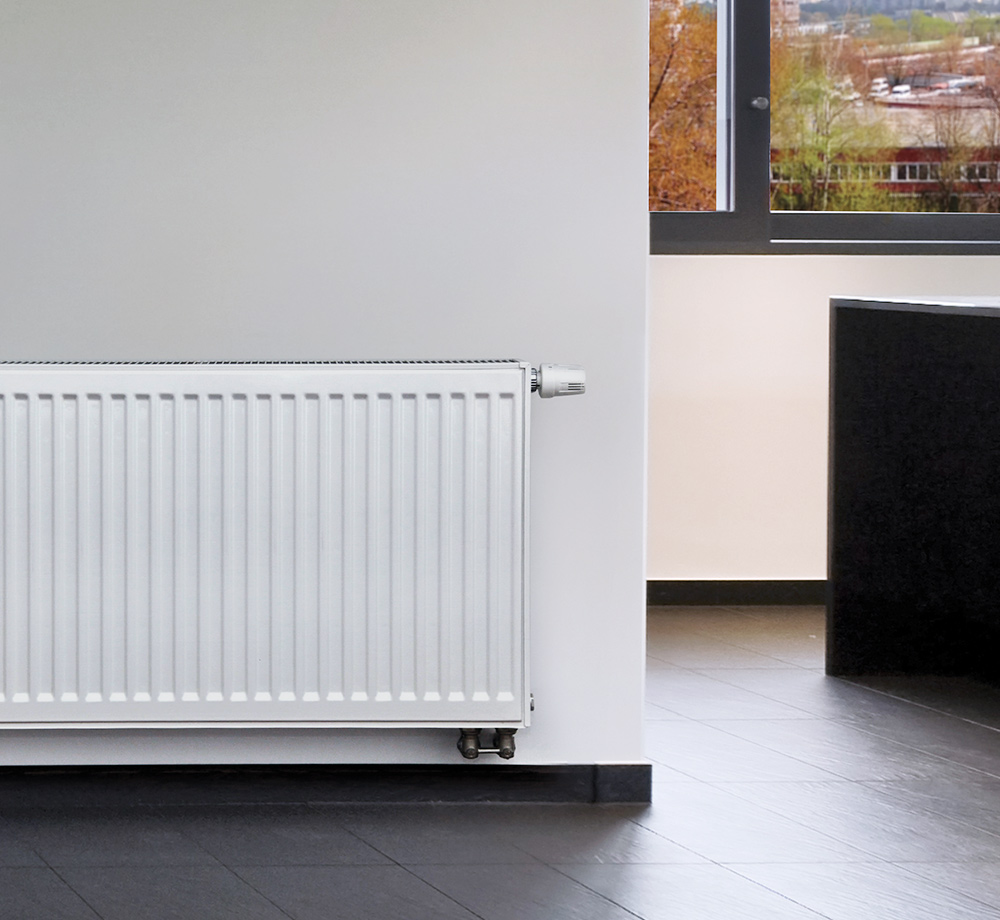

Steel panel radiators "Oasis Pro" are heating devices that are manufactured at the domestic enterprise "Forte Prom Steel GmbH" from cold rolled steel. According to their parameters, panel radiators can be suitable for any room – their height can be from 300 to 600 mm, and their length ranges from 400 to 3000 mm. Due to the wide range, steel radiators "Oasis Pro" can be used in a wide variety of heating projects.

According to the type of connection, radiators "Oasis Pro" come in two types: PB – with a side connection and PN – with a bottom connection.

Steel panel radiators "Oasis Pro" are structurally divided into 7 types: 10, 11, 20, 21, 22, 30 and 33, where the first digit shows the number of steel panels, and the second digit shows the number of crates creating convection.

For types 10, 20 and 30, a hygienic design is possible, specially designed for installation in medical institutions (hospitals, polyclinics, hospitals, medical units, medical centers and other medical institutions).

All models of steel panel radiators "Oasis Pro" have a 10-year warranty period.

  • image description Mounting elements are included in the package
  • image description The maximum working pressure is 10 atm
  • image description 10 years warranty
  • image description The thickness of the steel is more than 1.2 mm
  • image description Insured in Rosgosstrakh for 10,000,000 ₽
  • image description Modern quality control system
  • image description They have high heat dissipation
  • image description High quality, confirmed by the certificate of conformity to GOST 31311
  • At the initial stage of the production of "Oasis Pro" steel radiators, 1.24 mm thick steel is used, which allows, after the stamping process, to obtain a steel thickness of more than 1.2 mm, even in places where the steel is stretched;
  • All "Oasis Pro" panel heaters have a high-quality heat-resistant protective and decorative coating in white RAL 9016;
  • The entire painting process consists of surface preparation from the German manufacturer Henkel, a primer from the Italian manufacturer Arsonsisi SpA and the use of European-made Nanoral paint. This complex guarantees long-lasting protection for the entire operational life of radiators;
  • Radiators "Oasis Pro" have high heat dissipation;
  • The operating pressure of the heating device can reach 10 atmospheres;
  • They have increased strength and resistance to water shocks;
  • Fittings from Berg, Germany are used for "Oasis Pro" radiators;
  • Universal connection diameter ½”;
  • High product quality is ensured by strict control of the entire production cycle;
  • The warranty period for "Oasis Pro" steel panel radiators is 10 years.

Оптовые закупки для профессионалов рынка

  • Индивидуальная система скидок
  • Наличие всего ассортимента на складе
  • Оперативная доставка в любой регион РФ, даже минимальной партии
  • Гарантия и сервис производителя
  • Оптимальное соотношение цены и качества
  • Более 500 сервисных центров обслуживания по всей стране
  • Система онлайн заказов продукции, позволяющая вам оперативно делать заказы в любое удобное время
Type Height, mm Length, mm Depth, mm Center-to-center distance, mm The volume of the coolant, l Heat transfer, W Weight, kg
10 400 400 48,5 349 0,9 0,272 3,83
10 400 500 48,5 349 1,1 0,339 4,63
10 400 600 48,5 349 1,3 0,407 5,47
10 400 700 48,5 349 1,5 0,475 6,24
10 400 800 48,5 349 1,7 0,543 7,03
10 400 900 48,5 349 2 0,611 7,85
10 400 1000 48,5 349 2,2 0,679 8,67
10 400 1100 48,5 349 2,4 0,747 9,44
10 400 1200 48,5 349 2,6 0,815 10,26
10 400 1300 48,5 349 2,8 0,883 11,08
10 400 1400 48,5 349 3,1 0,95 11,89
10 400 1500 48,5 349 3,3 1,018 12,67
10 400 1600 48,5 349 3,5 1,086 13,48
10 400 1700 48,5 349 3,7 1,154 14,35
10 400 1800 48,5 349 3,9 1,222 15,16
10 400 1900 48,5 349 4,1 1,29 15,96
10 400 2000 48,5 349 4,4 1,358 16,76
10 400 2100 48,5 349 4,6 1,426 17,57
10 400 2200 48,5 349 4,8 1,493 18,39
10 400 2300 48,5 349 5 1,561 19,17
10 400 2400 48,5 349 5,2 1,629 19,98
10 400 2500 48,5 349 5,5 1,697 20,78
10 400 2600 48,5 349 5,7 1,765 21,59
10 400 2700 48,5 349 5,9 1,833 22,37
10 400 2800 48,5 349 6,1 1,901 23,19
10 400 2900 48,5 349 6,3 1,969 24,00
10 400 3000 48,5 349 6,5 2,037 24,80
